4000 BPH Chicken Slaughter Line Solution

4000 BPH Industrial Chicken Slaughterhouse Turnkey Design

Solution Details

4000 BPH Industrial Chicken Slaughterhouse Turnkey Design

1. Project Introduction

The 4000 BPH chicken slaughterhouse concept represents a large-scale industrial processing plant engineered by Qingdao Raniche Machinery Technology Co., Ltd. for markets requiring high productivity, advanced hygiene controls, and long-term operational stability.

At this capacity, the facility must function as a fully integrated food processing complex, combining production, logistics, utilities, staff management, and cold-chain systems into a single coordinated layout.

This model is designed for:

National poultry distributors
Integrated farms & food groups
Export-oriented processing plants
Industrial processors supplying supermarkets and cold-chain networks
Investors aiming to build high-capacity slaughtering facilities

2. Core Design Philosophy of the 4000BPH Model

Industrial-grade production efficiency

The design supports high-throughput processing with minimized downtime, balanced workstations, and synchronized equipment.

Comprehensive hygiene zoning across the entire plant

The factory is divided into:

Dirty zone (live bird handling)
Semi-clean zone (slaughter & evisceration)
Clean zone (chilling & packing)
Cold storage & outbound logistics
Staff hygiene & administrative zones
Technical and utility rooms

Each area is isolated with controlled access to maintain food safety standards.

Multi-pathway movement design

Independent routes for:

Personnel
Raw materials
Finished products
Waste removal
Ice / steam / utilities logistics

This ensures safe and efficient facility operation.

High-level cold-chain architecture

From pre-chilling to cold storage and dispatch, every step is engineered to protect product freshness.

Scalable infrastructure for future expansion

The design can be extended to capacities of 5000–6000BPH.

3. Workflow Structure (Industrial-Grade Process)

The 4000BPH process model integrates high-capacity modules across the full production chain:

Live Bird Reception & Crate Logistics
Stunning / Halal Cutting Station
Extended Bleeding Line
Controlled Multi-Stage Scalding
High-Capacity Defeathering Section
Evisceration, Viscera Handling & Inspection
Feet Processing & Separation Line
Transfer into Clean Zone
Large-scale Pre-chilling System
Portion Cutting, Sorting & Packing
Cold Storage and Outbound Loading

The structure ensures stable, continuous operation at industrial speed.

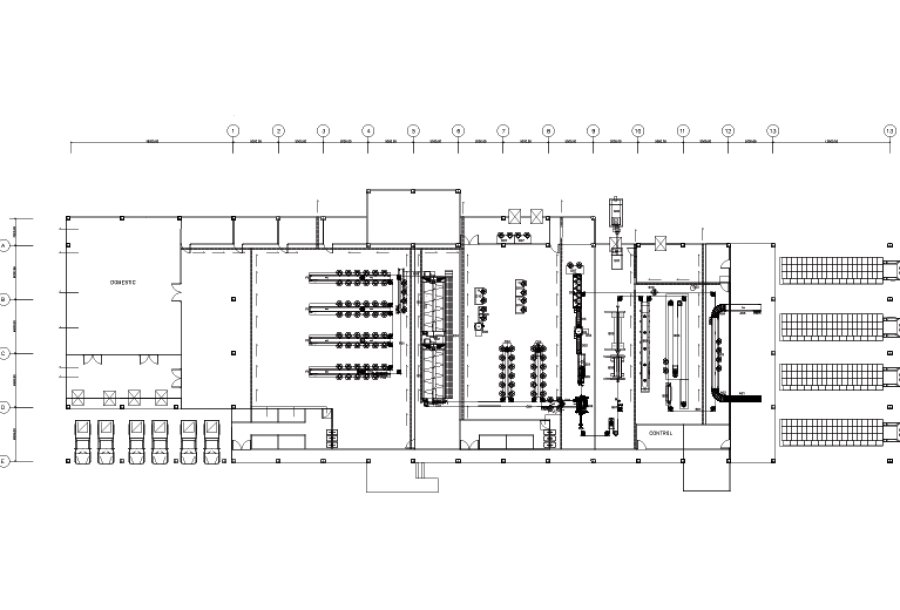

4. Factory Layout Overview

Zone A — Live Bird Reception & Primary Slaughtering

Designed to accommodate heavy truck movement and continuous crate unloading.
Includes slaughtering, bleeding, scalding, and plucking systems, arranged for uninterrupted flow.

Zone B — Evisceration & Organ Processing Zone

This semi-clean environment includes:

Evisceration stations
Manual and visual inspection points
Feet and organ processing modules
Waste and byproduct routing

All configured to minimize cross-contamination.

Zone C — Chilling & Clean Movement Corridor

A temperature-controlled sector incorporating:

Large spiral or linear pre-chillers
Clean transfer channels
Carcass movement into further processing

The zone maintains strict hygiene and temperature stability.

Zone D — Cut-Up, Sorting & Packing Hall

A fully clean-controlled environment supporting:

Portioning and trimming
Grading systems
Packaging operations
Ice-assisted temperature control

This zone links directly with cold storage for seamless logistics.

Zone E — Cold Rooms, Freezers & Dispatch Area

Includes chilled and frozen storage, carton storage, and outbound logistics corridors.
Designed to support both domestic supply chains and export conditions.

Staff, Administrative & Technical Areas

The factory includes:

Changing rooms and hygiene passages
Offices
Rest rooms
Mechanical / technical rooms
Equipment service areas

This ensures the plant functions as a complete industrial operation.

5. Equipment Modules (Showcase Version)

Slaughter Line Equipment

Overhead conveyor system
Crate conveyor
Stunning / Halal station
Bleeding tunnel
Multi-stage scalder
High-efficiency defeathering machines
Head removal equipment

Evisceration Section

Evisceration trough
Organ processing modules
Feet cutter & unloader
Shackle washer

Chilling & Final Processing

Spiral or modular pre-chiller
Transfer systems
Portioning tables
Packing stations

Organ/Gizzard Lines

Oil-removal machine
Gizzard peeler

These configurations adapt according to the client’s final product requirements.

6. Utilities & Supporting Systems

Ice Production System

Provides cooling support for cut-up & packing zones.

Steam Generation System

Supplies scalding, sanitation, and equipment cleaning needs.

Cold Chain System

Includes chilled rooms, freezers, and temperature monitoring.

Water & Drainage Networks

Designed for easy sanitation and wastewater management.

Air & Electrical Systems

Organized into technical corridors for safe servicing.

Waste Management Area

Ensures compliant handling of feathers, organs, wastewater, and solid waste.

7. Application Markets

The 4000BPH concept is ideal for:

Middle East large Halal processors
African regional poultry supply hubs
Southeast Asia’s industrial poultry factories
South America’s national food supply chains
Eastern Europe & CIS modernization projects

8. Why This 4000BPH Concept Demonstrates Raniche's Strength

Mastery of industrial-level poultry plant engineering
Ability to design complex multi-zone food factories
Integration of cold-chain, utilities, and production
Experience serving high-output international projects
Scalability and adaptability for different markets
Proven capability as a turnkey slaughterhouse designer

This plan positions Raniche not only as an equipment manufacturer but a comprehensive poultry processing engineering provider.

For customized plant layouts, engineering drawings, and project quotations, contact Qingdao Raniche Machinery today.
We provide complete, scalable poultry slaughterhouse solutions for global industrial processors.
