5000 BPH Poultry Slaughterhouse Solution

5000 BPH Industrial Poultry Slaughterhouse Master Plan

1. Project Positioning

The 5000 BPH poultry slaughterhouse represents a fully industrialized poultry processing complex, designed by Qingdao Raniche Machinery Technology Co., Ltd. to meet the demands of large food groups, national distributors, and export-oriented processors.

At this capacity level, the slaughterhouse is no longer a single production line—it becomes a multi-functional industrial food factory, integrating:

• High-speed slaughtering

• Centralized processing

• Cold-chain logistics

• Utility systems

• Staff and management facilities

• Long-term expansion planning

This design demonstrates Raniche’s advanced capability in large-scale poultry plant engineering and master planning.

2. Engineering Concept Behind the 5000BPH Model

Ultra-high throughput with production stability

The entire layout is engineered to sustain continuous high-volume operation, with balanced stations and parallel processing sections.

Factory-level hygiene architecture

The plant is divided into multiple independent hygiene zones with controlled access, ensuring compliance with international food safety standards.

Multi-dimensional movement planning

Separate circulation systems for:

• Live birds

• Finished products

• Personnel

• Waste & by-products

• Ice, steam, and utilities

This minimizes interference between operations.

Strong cold-chain dominance

Cooling and freezing are core design elements, not auxiliary sections.

Long-term scalability

The factory framework allows future upgrades to 6000–8000BPH with structural continuity.

3. High-Capacity Processing Workflow

The 5000BPH process structure follows an industrial production logic:

1. Live bird receiving & logistics control

2. Stunning / Halal slaughter stations

3. Extended bleeding system

4. Multi-stage scalding modules

5. Industrial defeathering lines

6. Evisceration & inspection platforms

7. Feet and by-product processing

8. Clean-zone transfer corridors

9. Large-capacity pre-chilling systems

10. Portioning, grading & packing

11. Cold storage, palletizing & dispatch

The workflow ensures speed, hygiene, and uniform product quality.

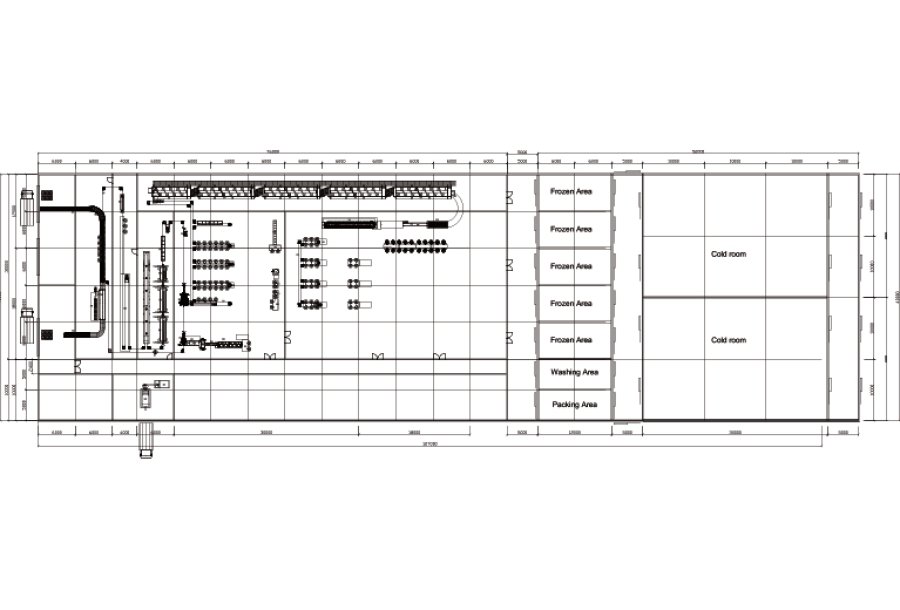

4. Factory Layout Architecture

 Zone A — Live Bird Logistics & Slaughter Core

Designed for high-volume truck unloading and continuous crate flow.
Includes slaughter, bleeding, scalding, and plucking systems arranged for uninterrupted industrial production.

 Zone B — Evisceration & By-product Processing Hall

A semi-clean production hall with:

• Multiple evisceration stations

• Organ sorting and inspection

• Feet processing lines

• Waste and by-product routing

This zone ensures hygienic handling at high speed.

 Zone C — Central Chilling & Clean Transfer System

The heart of the plant’s cold-chain control, including:

• Large spiral or linear pre-chillers

• Clean movement corridors

• Temperature-stabilized transfer to downstream areas

 Zone D — Value-Added Processing & Packing Center

Supports:

• Cut-up and portioning

• Sorting and grading

• Packaging operations

• Ice-assisted temperature control

Designed for flexibility in final product formats.

 Zone E — Cold Storage, Palletizing & Distribution

Includes:

• Large chilled rooms

• High-capacity freezing rooms

• Pallet staging areas

• Dock-level loading corridors

Ensures seamless outbound logistics.

 Administrative, Staff & Technical Areas

The plant integrates:

• Staff hygiene passages

• Changing rooms

• Offices and control rooms

• Mechanical & electrical rooms

• Equipment service corridors

This completes the factory as a fully operational industrial unit.

5. Equipment System Overview (Showcase Level)

Slaughtering System

• High-speed overhead conveyor lines

• Crate conveying system

• Stunning / Halal slaughter stations

• Extended bleeding tunnels

• Multi-stage scalding tanks

• Industrial defeathering machines

• Head removal systems

Evisceration & Organ Handling

• Evisceration troughs

• Organ processing modules

• Feet cutting and unloading systems

• Automatic shackle washing

Chilling & Downstream Processing

• Large-capacity pre-chillers

• Carcass transfer systems

• Portioning and grading tables

• Packing lines

6. Integrated Utility Infrastructure

● Flake Ice Production Plant

Supports chilling, cut-up areas, and packaging temperature control.

● Steam Generation System

Provides steam for scalding, sanitation, and cleaning processes.

● Cold Chain Infrastructure

Includes chillers, freezers, temperature control systems, and monitoring.

● Water, Drainage & Wastewater Treatment

Designed for high-volume sanitation and environmental compliance.

● Air, Electrical & Control Systems

Centralized technical corridors for safe and efficient maintenance.

7. Suitable Market Applications

This 5000BPH slaughterhouse is designed for:

• Middle East mega Halal processing plants

• African national poultry supply hubs

• Southeast Asian industrial poultry complexes

• South American large food corporations

• Europe & CIS large modernization projects

8. Why the 5000BPH Design Highlights Raniche’s Expertise

• Proven ability to design ultra-high-capacity poultry      processing plants

• Strong mastery of industrial hygiene zoning

• Integrated cold-chain and utility engineering

• Experience delivering large international projects

• Flexible design adaptable to regulatory and market demands

• Positioning as a true turnkey poultry processing solution      provider

This concept clearly communicates Raniche’s strength in industrial-scale engineering, far beyond standard equipment supply.

For customized factory layouts, detailed engineering consultation, and project quotations, please contact Qingdao Raniche Machinery Technology Co., Ltd.
We deliver complete, scalable poultry slaughterhouse solutions worldwide.
