500 BPH Chicken Slaughtering Line Solution

500 BPH Complete Chicken Slaughterhouse Design Solution

1. Project Background

This 500 birds per hour chicken slaughterhouse design is developed by Qingdao Raniche Machinery Technology Co., Ltd., a professional manufacturer and engineering provider specializing in global poultry processing solutions.

The purpose of this design is to showcase a scalable, hygienic, and practical poultry slaughtering layout that can be applied to small and medium-sized processing plants. The model reflects Raniche’s capability in slaughterhouse planning, equipment configuration, process design, and turnkey engineering.

This solution is suitable for:

• Broiler processing

• Local chicken processing

• Fresh market supply

• Export-oriented slaughtering

• Halal-certified operations

2. Design Objectives

The 500 BPH slaughterhouse concept is planned around the following core principles:

• Stable production efficiency      suitable for 500 birds/hour

• Hygienic workflow following      international slaughtering guidelines

• Practical layout optimized for      labor efficiency

• Separation of clean and unclean zones

• Temperature-controlled chilling section

• Smooth logistics route from live      birds to final packing

• Expandable design able to upgrade      to higher capacity

3. Slaughtering Process Flow

The solution incorporates a modern poultry slaughtering workflow including:

1. Live bird receiving

2. Stunning or Halal manual slaughter

3. Bleeding

4. Scalding

5. Plucking

6. Head removal

7. Evisceration

8. Feet processing

9. Carcass pre-chilling

10. Portion cutting & packing

This standardized flow ensures food safety, efficient operation, and smooth production management.

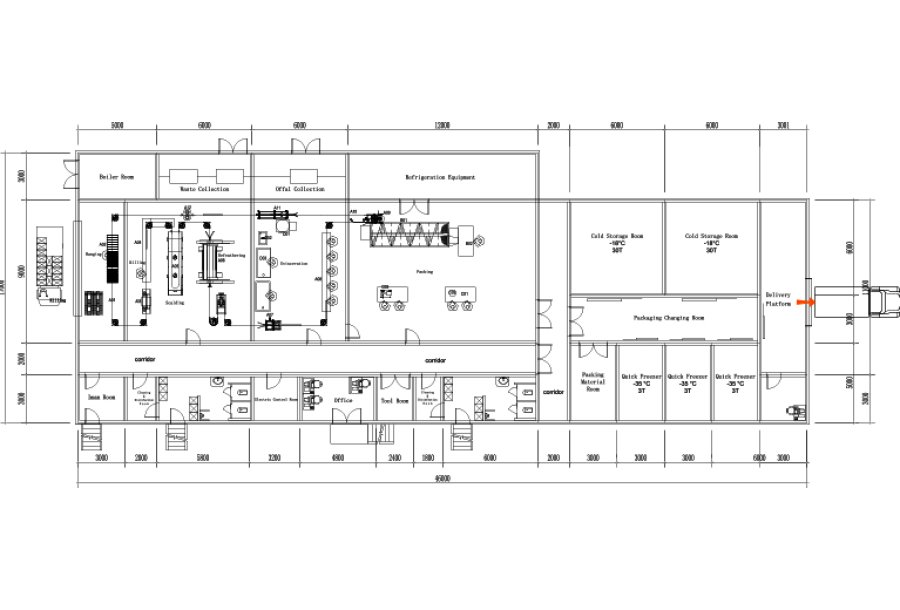

4. Layout & Workshop Zoning

The 500 BPH slaughterhouse layout is designed to demonstrate Raniche’s engineering capability. The workshop includes:

● Live Bird Handling Zone

Designed for crate receiving, stunning, and bleeding. Maintains animal welfare and efficient movement.

● Scalding & Plucking Area

Compact layout with optimized production line length.

● Evisceration Section

Hygienic operation table and evisceration trough ensure proper viscera handling and waste collection.

● Chilling Section

Integrated spiral pre-chiller placed after evisceration to rapidly cool carcasses to safe temperature.

● Packing & Dispatch Area

Designed for final cutting, weighing, packaging, and temporary cold storage.

All sections follow HACCP principles and zoning requirements for food processing facilities.

5. Core Equipment Configuration

This display solution includes the following equipment modules:

Slaughter Line Equipment

• Overhead conveying line

• Crates conveyor

• Stunning device

• Bleeding trough

• Scalder

• Vertical plucker

• Head cutter

• Evisceration trough

• Automatic feet cutter

• Feet unloader

• Shackle washer

Chilling & Post-processing

• Spiral pre-chiller

• Carcass transfer trough

• Portion cutting table

• Packing machine

Gizzard Processing Line

• Gizzard oil & grease removing machine

• Gizzard peeling machine

Equipment can be adjusted based on customer requirements, market standards, and automation level.

6. Optional Supporting Systems

For different country requirements, additional systems can be integrated:

• Cold room or blast freezer

• Flake ice machine

• Steam generator or boiler

• Wastewater treatment

• Air compressor system

• Stainless steel worktables

• Halal slaughter station

• Carcass grading or weighing system

These optional modules allow the plant to adapt to diverse markets and regulatory environments.

7. Global Market Application

The 500 BPH line is ideal for small and growing poultry processors in regions such as:

• Middle East

• Africa

• Southeast Asia

• South America

Its layout flexibility and moderate capacity make it suitable for both domestic supply and export-oriented operations.

8. Why Choose Raniche

Raniche is more than an equipment supplier — we provide full slaughterhouse engineering capability, including:

• Professional layout and plant design

• Experienced slaughtering process planning

• Hygienic workshop zoning concepts

• Halal-compliant solutions

• Installation and commissioning support

• Worldwide project delivery experience

• In-house manufacturing and quality control

Our goal is to help clients build efficient, modern, and competitive poultry processing facilities.

For layout drawings, pricing, and detailed project consultation, please contact Qingdao Raniche Machinery today.
Your customized slaughterhouse design is one step away.
