Broiler Chicken Cutting Line Equipment for Poultry Processing

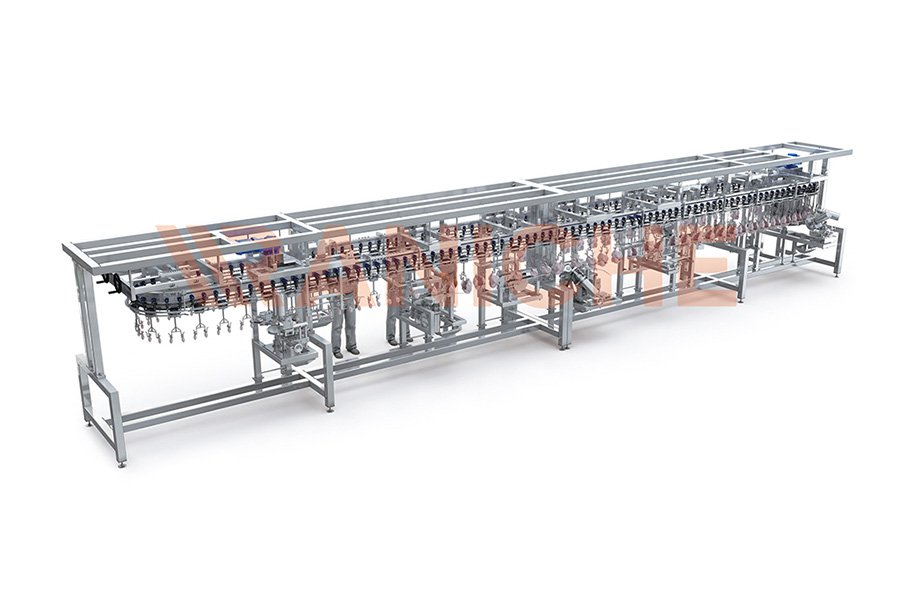

Broiler Chicken Cutting Line

The production line consists of a main frame, transmission system, actuators, control system, and safety protection devices. The main motor drives the line, while multiple segmented motors work together to complete the nine-piece cutting of broiler carcasses. Suitable for large-scale poultry slaughtering and cutting facilities.

Inquire now

Information

【Main Technical Specifications】
Rated Voltage: 380V
Rated Power: 9 kW
Production Capacity: 6,000 birds per hour
Dimensions: 14,000 × 2,000 × 2,500 mm (L × W × H)
Weight: 7,000 kg
Applicable Chicken Weight: 2–3 kg

【Configurable Cutting Units】
Tail Cutter, Neck Cutter, Keel Cutter, Wing Stretcher, Wing Tip Cutter, Middle Wing Cutter, Wing Root Cutter, Whole Wing Cutter, Breast Cap Cutter, Front Half Cutter, Tailbone Cutter, Leg Cutter, Two-Part Machine, Saddle Splitter, Drumstick Cutter, Breast Pre-cutter

【Control System Features】
- Control Core: PLC main controller
- Drive Method: Variable frequency speed control, waterproof & low-noise motors
- Operation Mode: One-button start/stop, sequential start-up and reverse-order stop
- Adjustment: Each unit speed independently adjustable, full-line synchronous linkage
- Safety Interlocks: Emergency stop, protective door opening protection, motor overload protection, material jam protection

【Applications】
Suitable for medium to large poultry processing enterprises, meeting industrial and standardized production needs for nine-piece chicken cutting, leg, wing, and breast meat products.
