1500 BPH Chicken Slaughter Line Solution

1500 BPH Chicken Slaughterhouse Engineering Plan

1. Project Introduction

The 1500 BPH poultry slaughterhouse design is developed by Qingdao Raniche Machinery Technology Co., Ltd. for clients seeking a medium–large capacity processing facility with full workflow integration and enhanced cooling capability.

This concept demonstrates Raniche’s ability to design a complete poultry processing plant, including slaughtering modules, chilled/clean zones, supporting utilities, personnel flow planning, and cold storage arrangement.

The plan is suitable for:

• Export-oriented poultry processors

• Investors building modern food-grade factories

• Halal-compliant slaughtering markets

• Commercial farms expanding into processing

• Regional supply centers serving supermarkets & wholesalers

2. Design Characteristics of the 1500BPH Model

● Higher throughput with stable workflow

The 1500BPH capacity is engineered for continuous, stable running with balanced station distribution to avoid bottlenecks.

● Complete hygiene zoning

The facility is divided into:

• Live bird and dirty zone

• Semi-clean processing area

• Clean chilling and packing zone

• Cold storage and logistics corridors

This structure follows international HACCP principles.

● Integration of utility rooms & staff areas

The concept includes working rooms, hygiene passages, equipment cleaning zones, and staff preparation areas to support efficient factory operation.

● Built-in support for flake ice & steam

The design incorporates an 8-ton/day flake ice plant and a 0.5T steam generator to meet cooling and heating needs for scalding, cleaning and chilling.

● Expandable design

The workshop can be extended to higher capacities (up to 2000–2500BPH) with structural continuity.

3. Processing Workflow Overview

The 1500BPH workflow is structured to maintain smooth product flow across all sections:

1. Live Bird Reception & Crate Handling

2. Stunning / Halal Slaughter

3. Bleeding Section

4. Scalding with Controlled Temperature

5. High-Efficiency Defeathering Line

6. Head Removal & Viscera Processing

7. Feet Handling & Pre-cleaning

8. Carcass Transfer to Clean Zone

9. Spiral or Linear Pre-chilling Section

10. Cutting, Sorting & Packing

11. Cold Room Storage & Dispatch

The workflow design follows a one-directional movement principle to avoid cross-contamination.

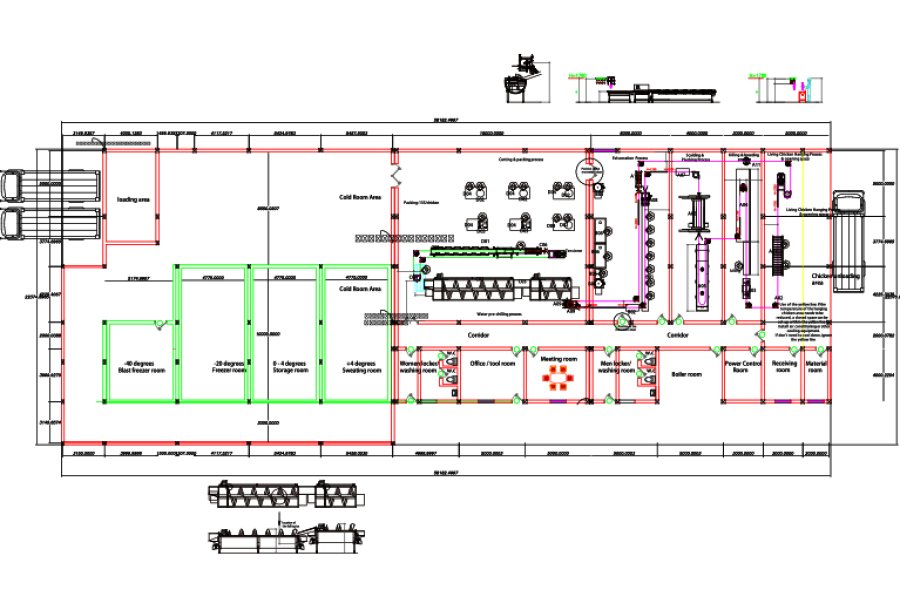

4. Factory Layout Description (Based on PDF Structure)

 Live Bird Handling Area

Located separately with direct access for truck unloading.
Includes crate washing position and controlled movement into slaughter zone.

Slaughter & Defeathering Area (Zone A)

This area integrates:

• overhead conveyor track

• stunning/slaughter operation zone

• bleeding trough

• scalding and defeathering machines

Designed for stable throughput and safe drainage.

Evisceration & Product Inspection Zone (Zone B)

Follows international hygiene zoning:

• viscera separation

• organ collection line

• manual inspection positions

• feet processing modules

The area ensures clean handling and proper temperature control.

Chilling & Post-Processing (Zone C)

Includes:

• spiral or modular pre-chiller

• carcass transfer pathways

• portioning tables

• weighing and simple packing stations

Cooling capacity is enhanced by the flake ice integration.

Cold Storage & Dispatch (Zone D)

Based on your PDF:

• chilled room

• frozen room

• logistics corridor

• accessory storage area

• staff cleaning room and support rooms

This ensures a complete cold chain from processing to shipment.

5. Equipment Modules Included

Slaughter Line System

• Overhead conveyor line

• Crate conveyor

• Stunning / Halal cutting

• Bleeding trough

• Scalder

• Plucker

• Head cutter

• Evisceration trough

• Automatic feet cutter

• Shackle washer

• Feet unloader

Chilling & Downstream Section

• Spiral or modular pre-chiller

• Carcass transfer equipment

• Cutting table

• Packing area

Gizzard / Organ Module

• Gizzard oil-removing unit

• Gizzard peeler

These modules can be adjusted based on product type: whole birds, cut-up products, or mixed output.

6. Integrated 8-Ton Flake Ice System

The included flake ice plant supports:

• carcass chilling

• temperature stabilization in cutting areas

• ice supply for boxes / bins

• improved cold chain performance

The ice room is strategically placed near the clean processing zone for efficient distribution.

7. 0.5T Steam Generator (Boiler Room)

Steam supports:

• scalding unit

• equipment cleaning

• sanitation procedures

• certain thermal processing needs

The boiler room is placed with safe ventilation and direct service access, fully separated from food zones.

8. Suitable Markets

This 1500BPH plant is ideal for:

• Middle East (Halal grade)

• Africa (government-supported projects)

• Southeast Asia (growing mid-size processing)

• South America (regional distribution centers)

• East Europe & CIS countries

9. Why This Plan Reflects Raniche’s Strength

This design communicates Raniche’s comprehensive engineering ability:

• Capable of designing complete poultry processing plants, not      just supplying equipment

• Strong understanding of hygiene zoning & global food safety      standards

• Ability to integrate utilities (steam, ice, water, cold chain)      into a unified plan

• Experience in 1500–6000BPH international projects

• Modular design allowing future upgrades

• Engineering drawings adaptable to local regulations

This makes Raniche a reliable partner for turnkey poultry slaughterhouse projects worldwide.

If you need customized drawings, factory planning, or pricing, please contact Raniche’s engineering team.
We provide full design support and turnkey solution guidance tailored to your local market.
