1000 BPH Chicken Slaughterhouse Solution

1000 BPH Chicken Slaughterhouse Engineering Plan

1. Introduction to the 1000 BPH Model

The 1000 BPH chicken slaughterhouse concept is designed by Qingdao Raniche Machinery Technology Co., Ltd. as a mid-capacity processing solution capable of supporting continuous and stable production.

This layout is created for customers aiming to build a professional, international-standard slaughterhouse with:

• higher output than small starter lines

• optimized labor utilization

• food safety–driven zoning design

• modular automation sections

• optional Halal and export-standard processing

The 1000BPH design is suitable for poultry farms, agro-industrial groups, government-supported processing centers, and private investors expanding into poultry processing.

2. Design Highlights & Engineering Principles

To provide a clear representation of Raniche’s poultry processing engineering capabilities, this concept follows key principles:

● Process coherence

Each module—from live bird reception to chilling—is positioned to ensure smooth product flow with minimal backward movement.

● Hygienic zoning

The workshop is divided into distinct areas to prevent cross-contamination between dirty, semi-clean, and clean zones.

● Scalable layout

While designed for 1000 BPH, the layout allows future extension to 1500–2000 BPH with minimal structural change.

● Safety & compliance

Supports global standards including HACCP, ISO food hygiene guidelines, and Halal manual slaughter requirements.

● Ease of installation

Straightforward equipment positioning and utility routing reduce installation time and simplify maintenance.

3. Processing Flow Description

Compared with lower-capacity models, the 1000BPH processing flow is organized with a more integrated line system, including:

1. Live bird handling

2. Stunning or Halal cut

3. Bleeding

4. Controlled-temperature scalding

5. High-efficiency defeathering

6. Head removal and viscera processing

7. Feet processing and separation

8. Spiral pre-chilling section

9. Final cutting, weighing and packing

This flow is engineered to maintain consistent output while protecting carcass hygiene and product uniformity.

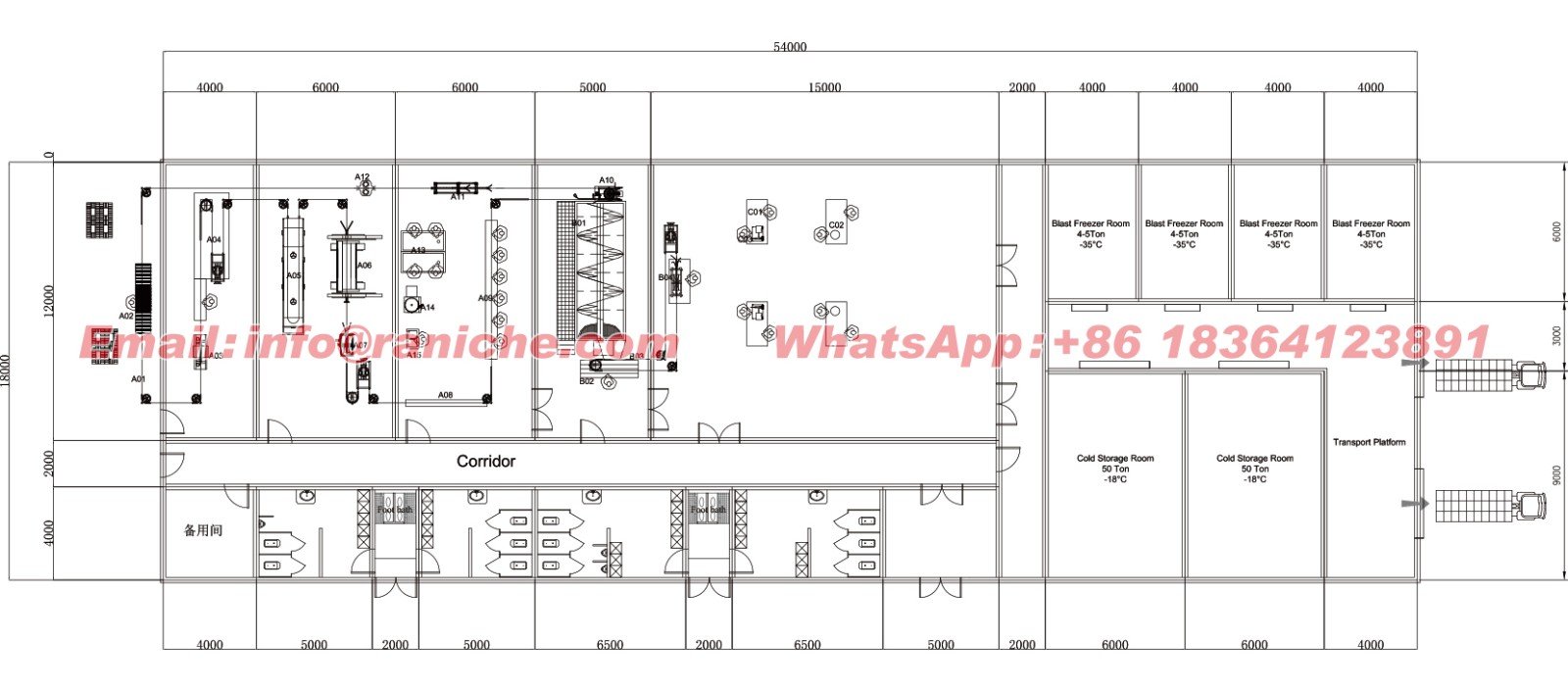

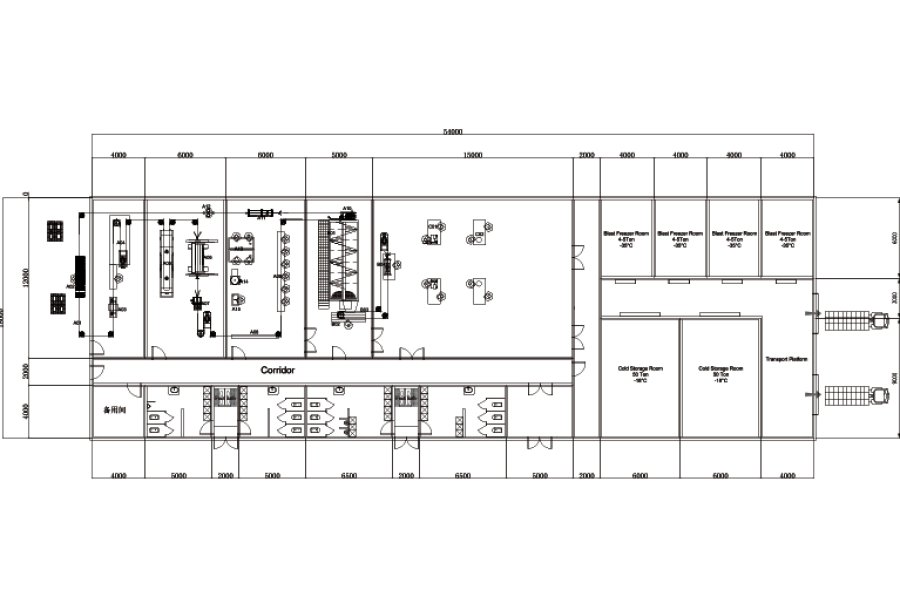

4. Layout Structure (Non-Parametric Display Version)

The 1000 BPH concept presents a visually clear and standardized slaughterhouse layout including:

Live Bird Receiving Zone

Designed for crate unloading and live bird handling, ensuring safety, orderliness, and compliance with animal welfare principles.

Evisceration & Inspection Area

A structured evisceration line ensures efficient viscera removal, organ collection, and manual inspection.

Chilling Section

The spiral pre-chiller provides consistent carcass cooling and supports high-throughput requirements typical of medium-sized plants.

Cutting & Packing Zone

The downstream area accommodates whole-carcass output or additional portioning, depending on customer preference.

Auxiliary Space Allocation

Includes equipment cleaning, water supply access, drainage channels, and hygiene buffer rooms.

Each functional zone is carefully aligned to highlight Raniche’s ability to create clean, efficient, internationally compliant slaughterhouse layouts.

5. Modular Equipment Configuration

Slaughter Line Equipment

• Overhead conveyor line

• Crate conveyor

• Stunning system

• Bleeding trough

• Scalding unit

• High-efficiency plucker

• Head cutting system

• Evisceration trough

• Automatic feet cutter

• Feet unloader

• Shackle cleaning system

Chilling & Downstream Processing

• Spiral pre-chiller

• Carcass transfer equipment

• Cutting table

• Packing station

Organ/Gizzard Processing Module

• Gizzard oil removing machine

• Gizzard peeling machine

Configuration varies per customer’s final product requirements and market standards.

6. Optional Supporting Systems

The following systems can be integrated based on project scale and regional requirements:

• Steam generator or boiler

• Flake ice system

• Cold storage or blast freezing

• Wastewater treatment

• Air compressor and piping

• Halal slaughter station

• Stainless steel worktables & accessories

These modules enhance the plant’s operational flexibility and ensure compatibility with global processing norms.

7. Application Markets

This 1000 BPH layout is particularly suitable for:

• Middle Eastern markets requiring Halal compliance

• African countries developing medium-scale poultry facilities

• Southeast Asian processors shifting from manual to      semi-automatic systems

• South American regional processing plants

• Export-oriented poultry operations

8. Why This Design Demonstrates Raniche’s Capability

This scheme reflects Raniche’s strengths in:

• Professional poultry slaughterhouse planning

• Ability to design for multiple capacities and product types

• Deep understanding of international slaughtering standards

• Integrated equipment + layout engineering capability

• Flexibility to adapt to climate, utility conditions and client      preferences

• Successful global project experience across 65+ countries

Unlike standard equipment catalogs, this design proposal highlights Raniche’s true turnkey engineering abilities, showing customers that we can deliver complete slaughterhouse planning—not just machines.

For customized drawings, pricing, or project planning, please contact Qingdao Raniche Machinery.
We provide tailored solutions for poultry processors worldwide.
