1000 BPH Duck Slaughtering Line

1000 BPH Duck Slaughtering Line Solution

1. Solution Overview

The 1000 BPH duck slaughtering line is a dedicated automatic meat duck processing solution designed by Qingdao Raniche Machinery Technology Co., Ltd., based on practical engineering experience for overseas poultry markets.

Duck processing differs significantly from chicken processing in terms of scalding control, feather removal, waxing process, and chilling requirements.
This solution demonstrates Raniche’s capability to design species-specific, medium-capacity duck slaughterhouses with a complete and well-organized workflow.

The layout and configuration shown are provided as a reference engineering solution, intended to showcase design capability rather than fixed technical specifications.

2. Design Positioning & Application Scenario

This 1000 BPH duck line is positioned as a commercial-scale duck processing model, suitable for customers who:

• Focus on meat duck processing

• Supply regional fresh or frozen duck markets

• Require stable continuous production

• Need waxing and de-waxing processes for skin quality

• Plan cold storage or freezing integration

It is commonly applied in Australia, Southeast Asia, Africa, and other duck-consuming markets.

3. Duck-Specific Processing Concept

Compared with chicken slaughtering lines, this duck solution is designed around several key duck-processing principles:

• Longer bleeding and scalding time

• Controlled scalding temperature for duck skin

• Waxing and de-waxing process integration

• Manual or semi-automatic evisceration for accuracy

• Screw-type pre-chilling for stable temperature reduction

These characteristics are fully reflected in the overall layout and equipment arrangement.

4. Processing Flow Description

The typical duck slaughtering and processing flow includes:

1. Live duck receiving and crate conveying

2. Hanging and stunning

3. Slaughtering and bleeding

4. Scalding

5. Primary defeathering

6. Waxing and cooling

7. De-waxing

8. Feet cutting

9. Manual evisceration

10. Fine feather cleaning

11. Screw-type pre-chilling

12. Dewatering and grading

13. Packing or freezing

This flow ensures clean appearance, stable output, and good product consistency.

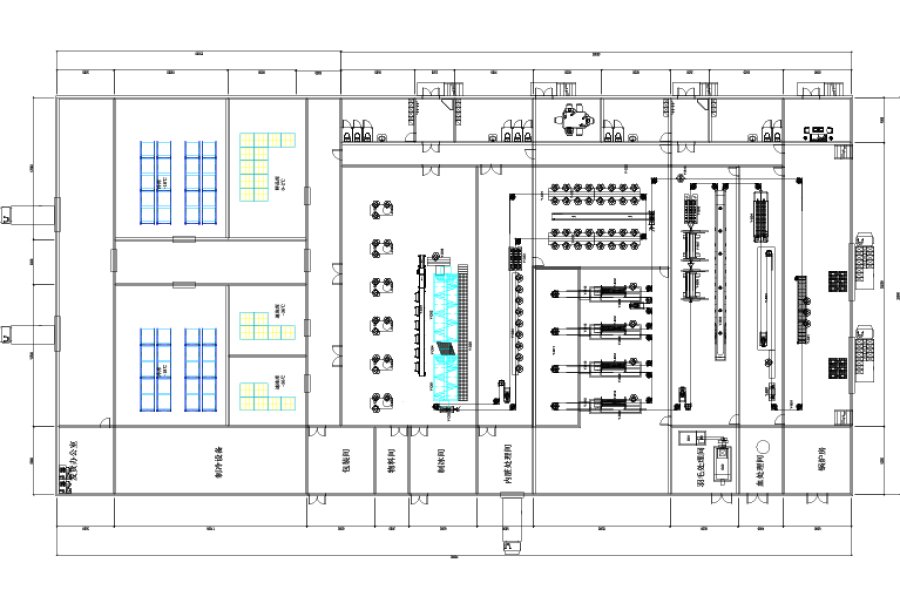

5. Functional Layout & Zoning (Engineering Display Description)

 Live Bird Handling & Slaughtering Area

Includes crate conveying, stunning, bleeding, scalding, and defeathering.
This area is designed as the primary dirty zone, with independent drainage and waste collection.

 Waxing & De-Waxing Area

A dedicated wax processing section ensures complete feather removal and clean duck skin surface, which is critical for market acceptance.

 Evisceration & Fine Cleaning Area

Manual evisceration and fine feather cleaning stations allow precise handling of internal organs and final carcass appearance control.

 Pre-Chilling Area

The screw pre-chilling system provides efficient and uniform cooling within a compact space, suitable for medium-capacity duck lines.

 Packing, Cold Storage & Freezing Area

Space is reserved for fresh product storage (0–2°C), cold storage (-18°C), and blast freezing rooms (-36°C), supporting diversified product output.

 Auxiliary & Utility Areas

Includes boiler room, ice-making room, refrigeration system room, feather and blood processing areas, and staff support zones.

6. Main Equipment Configuration (Overview Level)

Slaughtering & Defeathering

• Duck crate conveyor

• Overhead slaughtering line

• Stunning machine

• Bleeding trough

• Duck scalder

• Coarse and fine defeathering machines

Waxing Section

• Waxing tank

• Wax melting system

• Cooling wax bath

• De-waxing machine

Evisceration & Cleaning

• Evisceration conveyor

• Fine feather cleaning tank

• Feet cutting machine

• Shackle washer

Pre-Chilling

• Screw pre-chilling machine

• Connecting troughs

• Dewatering platform

Packing & Grading

• Grading scale

• Packing cones

• Working tables

Final configuration can be adjusted according to customer requirements.

7. Product Output & End Products

This solution is mainly designed for:

• Whole meat duck

• Fresh chilled duck

• Frozen duck products

Product structure can be adjusted based on market demand.

8. Typical Markets & Capacity Level

This 1000 BPH duck slaughtering line is suitable for:

• Australia

• Southeast Asia

• Africa

• Middle East

• Regions with established duck consumption

It represents a balanced capacity level between small duck lines and industrial-scale plants.

9. Why This 1000 BPH Duck Line Shows Raniche’s Expertise

This solution clearly demonstrates Raniche’s ability to:

• Design complete duck-specific slaughtering lines

• Integrate waxing and de-waxing processes

• Combine slaughtering, chilling, freezing, and storage planning

• Apply international processing logic to overseas projects

• Deliver turnkey poultry processing solutions

It strengthens Raniche’s position as an integrated solution provider of automatic poultry processing systems.

10. Important Notes

• This layout is for reference and display purposes only

• Final design will be customized according to customer site      conditions

• Equipment arrangement may be adjusted before contract      confirmation

• Auxiliary rooms shown are indicative, not part of equipment      supply

For customized layout design and quotation of a 1000 BPH duck slaughtering line, please contact Qingdao Raniche Machinery Technology Co., Ltd.
Our engineering team will tailor the solution according to your duck type, target market, and production goals.
